Diese APC Smart-UPS wurde für IT-Experten und Netzwerkadministratoren entwickelt, um die Betriebszeit und Betriebskontinuität zu gewährleisten. Die netzinteraktive 1000VA USV-Tower liefert reine Sinuswellenleistung zur Unterstützung kritischer Elektronik bei Stromunterbrechungen. Sie verfügt über einen IEC 320 C14-Eingang, 8 IEC 320 C13-Ausgangsstecker und 2 IEC-Überbrückungskabel. Sie bietet Cloud-basierte Fernüberwachung der Stromversorgung, USV-Firmware-Upgrades, Ferndiagnose und proaktive E-Mail-Benachrichtigungen mit Handlungsempfehlungen. Sie verfügt über einen SmartSlot für eine optionale Netzwerkmanagementkarte, die das ordnungsgemäße Herunterfahren von physischen Servern, virtuellen Maschinen und HCI-Clustern über PowerChute Network Shutdown ermöglicht. Die USV kann mit EcoStruxure IT oder mit zentralisierten Managementplattformen von Drittanbietern verbunden werden. Sie bietet Überspannungsschutz gegen Blitzeinschläge, Spannungsabfälle, Stromausfälle und Überspannungen.
- 1000VA/700W USV mit Line-Interactive Technologie und rein sinusförmigen Ausgang
- Ideal für Server, Speicher, Netzwerkschränke, VoIP & Desktops in Unternehmen, POS-Kassensysteme im Einzelhandel
- Die automatische Spannungsregelung hilft bei der Korrektur der Versorgungsspannung
- Cloud-basierte Fernüberwachung der Stromversorgung über den SmartConnect Ethernet Port
- Zuverlässiges Herunterfahren über serielle oder USB-Kabel via PowerChute Business Edition
- Umweltfreundliches Produkt
- Nicht zur Verwendung durch Verbraucher bestimmt. Intelligenter und effizienter Stromversorgungsschutz im Netzwerk mit skalierbarer Laufzeit. Ideal für Server, POS-Systeme, medizinische und Netzwerkgeräte
Produktmerkmale:
- Haupteingangsspannung: 230 V
- Weitere Eingangsspannung: 220 V / 240 V
- Hauptausgangsspannung: 230 V
- Weitere Ausgangsspannung: 220 V / 240 V
- Bemessungsleistung in W: 700 W
- Nennleistung in VA: 1000 VA

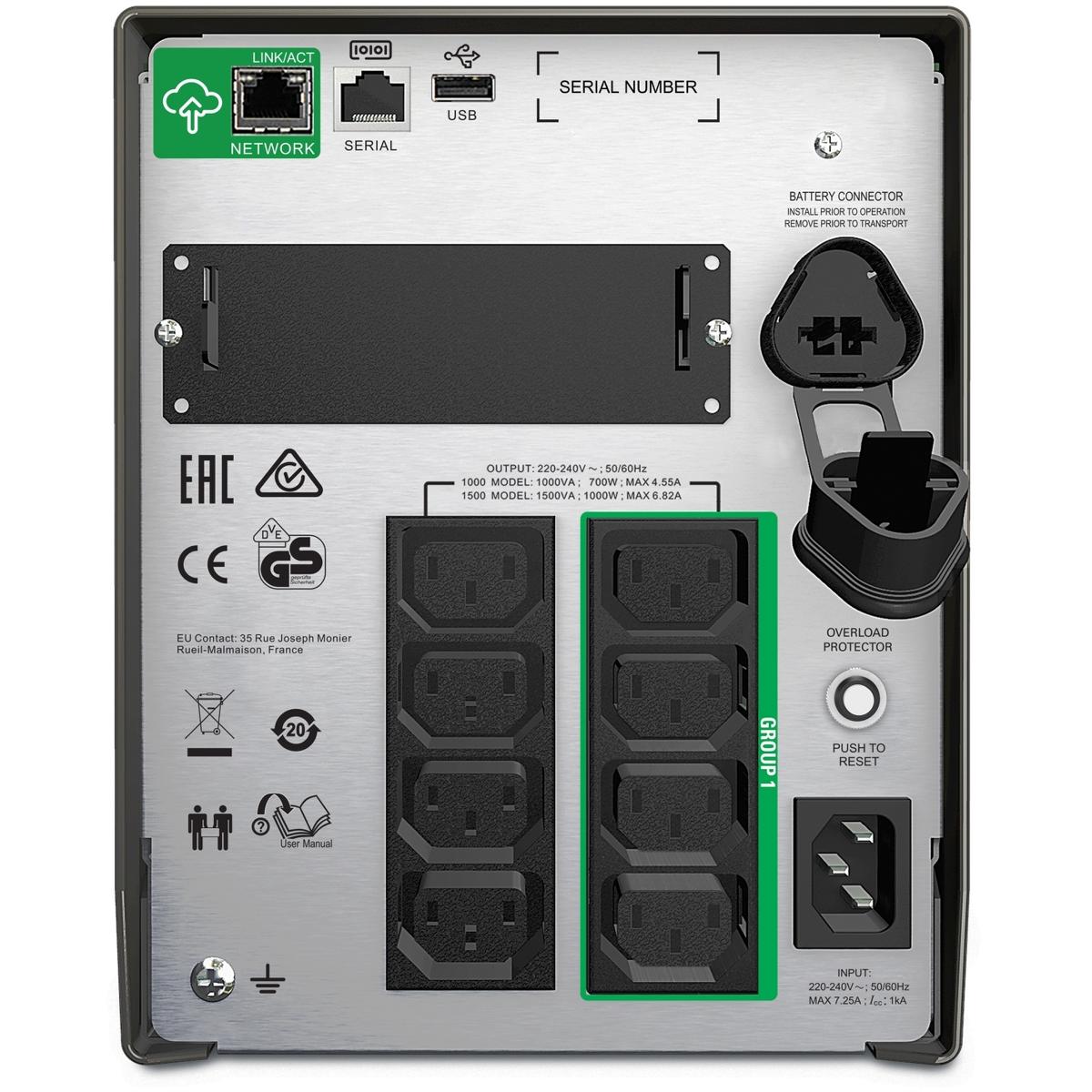

- Anschlussart der Eingänge: IEC 320 C14
- Anschlussart der Ausgänge:
- 8 IEC 320 C13
- 2 IEC-Steckbrücken
- Batterietyp: Bleisäurebatterie
- geliefertes Zubehör:
- Ethernet-Kabel Kat. 5
- Installationsanleitung
- USB-Kabel
- Zusatzmerkmale:
- Softwarepaket: SmartConnect Software für die Fernüberwachung der Stromversorgung Die Verfügbarkeit der Funktionen hängt von den Nutzungsbedingungen ab
Allgemein:
- Anzahl der belegten Steckplätze des Leistungsmoduls: 0
- Anzahl der freien Steckplätze für Leistungsmodule: 0
- Produkt Web-Unterfamilie: Cloud-enabled monitoring
- Redundant: No
Abmessungen:
- Farbe: schwarz
- Höhe: 21,9 cm
- Breite: 17,1 cm
- Tiefe: 43,9 cm
- Gewicht: 19,4 kg
- Montageort: vorne
- Montagepräferenz: No preference
- Montagemodus: Nicht Rack-montierbar
- Zwei Pfosten montierbar: 0
- USB-kompatibel: No
Eingang:
- Eingangsspannungsgrenzen:
- 151 - 302 V einstellbar
- 160 - 286 V
- Netzwerkfrequenz: 50/60 Hz +/-3 Hz automatische Erfassung
Ausgang:
- Oberschwingungsverzerrung: Weniger als 5 %
- Max. konfigurierbare Leistung in VA: 1000 VA
- Max. konfigurierbare Leistung in W: 700 W
- Umschaltzeit: 6 ms typisch, 10 ms max.
- USV-Typ: Line Interactive
- Wellentyp: Sinuswelle
- Ausgangsfrequenz: 50/60 Hz +/-3 Hz Netzsynchronisation
Konformität:
- Normen:
- EN/IEC 62040-1:2019/A11:2021
- EN/IEC 62040-2:2006/AC:2006
- EN/IEC 62040-2:2018
Umgebung:
- Geräuschpegel: 41 dBA
- Wärmeabgabe: 100 Btu/h
- Betriebshöhe: 0 - 10.000 ft
- Umgebungstemperatur bei Betrieb: 0?40 °C
- Umgebungstemperatur bei Lagerung: -15?45 °C
- Aufbewahrungshöhe: 0,00?15240,00 m
- Relative Luftfeuchtigkeit: 0?95 %
- Relative Feuchtigkeit bei Lagerung: 0?95 %
Batterien und Überbrückungszeit:
- Zusätzliche Informationen: Konfigurierbar für 220, 230 oder 240 V Nennausgangsspannung
- Verlängerte Laufzeit: 0
- Anzahl der gefüllten Batterieschächte: 0
- Anzahl der freien Batterieschächte: 0
- Ladezeit der Batterie: 3 h
- Anzahl der Ersatzbatterien: 1
- Batterielebensdauer: 3?5 Jahr(e)
- Batterieleistung in VAh: 264 VAh Laufzeit
- Leistung Batterieladegerät: 88 W bewertet
Kommunikation & Management:
- Bedienfeld: Multifunktions-LCD-Status- und Steuerkonsole
- Notabschaltung: optional
- Freie Steckplätze: 1
- Unterstützung von Kommunikationsanschlüssen:
- SmartConnect-Ethernet-Anschluss: für die Cloud-Überwachung. Die Verfügbarkeit der Funktionen hängt von den Nutzungsbedingungen ab.
- Alarm: Alarm bei Batteriebetrieb: Dezidierter Alarm bei niedriger Batterieladung: Überlast-Dauertonalarm
Überspannungsschutz und Filterung:
- Anstieg der Energiemenge: 459 J
- Geräuschunterdrückung: Mehrpolige Geräuschfilterung, 0,3 % IEEE-Überspannschutz, Null-Klemm-Reaktionszeit: Gemäß UL1449
